AUHW Series Warning Light & Electronic Horn Combination
- Transmits visual and auditory signals simultaneously
- Structure combining LED indicator light and high-quality electronic horn
- Clear sound with 8-code high-quality output
- 16 modes of tone combination possible by internal DIP S/W operation
- Built-in LED steady-flashing change S/W, adjustable volume depending on application environment
- 2 body color options (Beige, Silver)
- Protection rating : IP54
- Max Volume : Max. 105dB
- Materials : Globe[PC], Body[ABS], Reflector [Heat resistant type ABS]
- Operating Temperature : -20 ~ 40℃

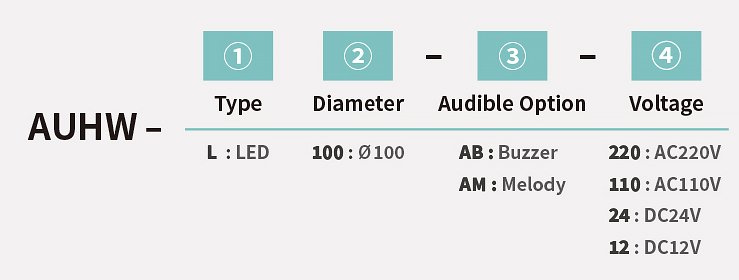

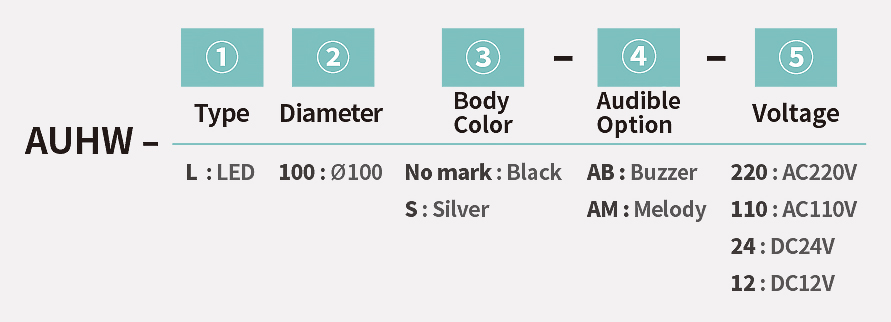

Nomenclature
Product Specifications
◎ Users can control sound combinations through the DIP switches in the product.
◎ Settings other than the basic factory specifications (AM, AB) are possible DIP S/W inside the product.
◎ You can order by setting the desired audible option.
| MODEL | S/W Basic Setting | Channel | Audible Option | Voltage | Current | Color |
|---|---|---|---|---|---|---|
| AUHW-L100-AM | Melody (AM)
Dip switches 2,3,4 ON |
A1 (Yellow)
A2 (Green) A3 (Blue) A4 (White) |
Turkish March
Piano Sonatas Home Sweet Home Fur Elise |
AC110V
AC220V DC12V DC24V |
0.056A
0.028A 0.15A 0.20A |
●Red(R)
●Yellow(Y) ●Green(G) |
| AUHW-L100-AB | Buzzer (AB)
Dip switches 1,2 ON |
beep ~ beep ~ beep
Ding Dong beep-ee beep beep beep beep |
Audible Option Specification Table
◎ It can be changed to use DIP switch and input pin channel adjustment, depending on the user’s selection.
| DIP / SW adjustment | A1 | A2 | A3 | A4 |
|---|---|---|---|---|
 All OFF |
Ding Dong Dang | Piano Sonatas | The Magic Flute | Home Sweet Home |
 NO.1 ON |
Ding Dong | Telephone bell | beep beep peep | Ding Dong Dang |
 NO.2 ON |
The Magic Flute | Piano Sonatas | Fur Elise | Telephone bell |
 NO.3 ON |
Piano Sonatas | Turkish March | Home Sweet Home | The Magic Flute |
 NO.4 ON |
Fur Elise | Turkish March | Home Sweet Home | beep beep beep beep |
 NO.1,2 ON |
beep ~ beep ~ beep | Ding Dong | beep-ee | beep beep beep beep |
 NO.1,3 ON |
The Magic Flute | Fur Elise | Turkish March | Home Sweet Home |
 NO.1,4 ON |
The Magic Flute | Home Sweet Home | Telephone bell | Ding Dong Dang |
 NO.2,3 ON |
The Magic Flute | Turkish March | Piano Sonatas | beep beep beep beep |
 NO.2,4 ON |
Home Sweet Home | The Magic Flute | Turkish March | Ding Dong |
 NO.3,4 ON |
The Magic Flute | Home Sweet Home | Ding Dong | Telephone bell |
 NO.1,2,3 ON |
Fur Elise | Home Sweet Home | The Magic Flute | Piano Sonatas |
 NO.1,2,4 ON |
The Magic Flute | Turkish March | Home Sweet Home | beep ~ beep ~ beep |
 NO.1,3,4 ON |
The Magic Flute | Piano Sonatas | Home Sweet Home | Ding Dong Dang |
 NO.2,3,4 ON |
Turkish March | Piano Sonatas | Home Sweet Home | Fur Elise |
 NO.1,2,3,4 ON |
Piano Sonatas | The Magic Flute | Fur Elise | Turkish March |

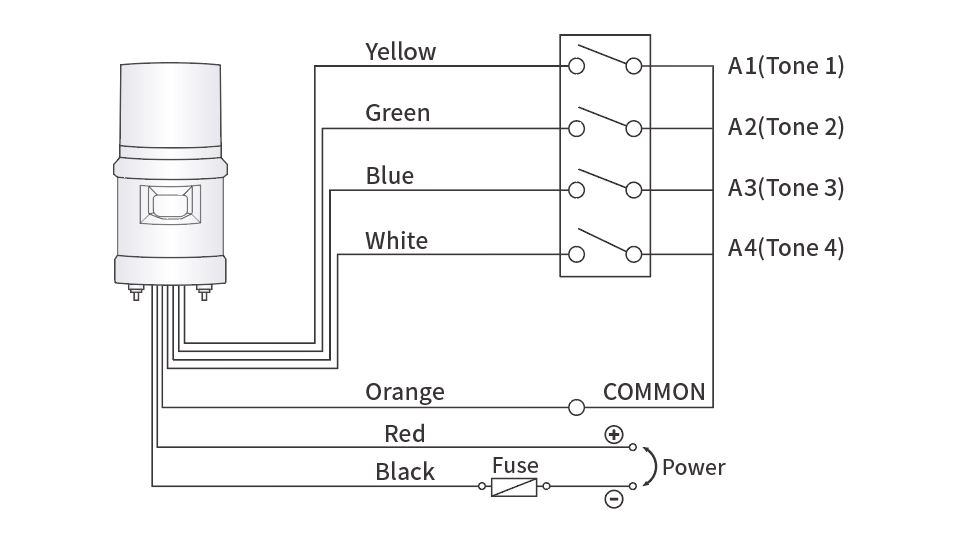

Product Wiring Diagram
Product Outside View
Function Settings

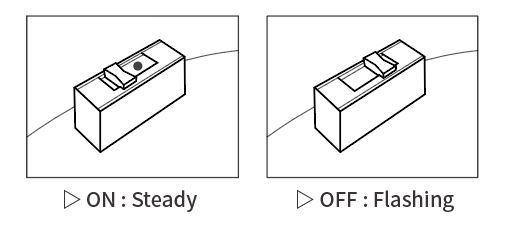

◎ Steady / Flashing
- When shipped from the factory, it is set to Flashing operation.
- After purchasing the product, users can reset the required behavior.
◎ Audible Option Selection Switch
- Depending on the user’s choice, sound combinations can be made with internal DIP switches.
◎ Volume Control
- Turning the internal volume control volume clockwise (cw) decreases the volume, and turning it counterclockwise (ccw) increases the volume.
Precautions When Installing
◎ When installing the product, install it in the correct direction.
◎ Install the power cable outlet facing downward.
◎ If the power cable outlet is installed facing to the side or sky, moisture or rainwater can easily penetrate and cause damage.
