AUT-50-L3S-AB-24Aluminum Tower Light [Steady type]
View Catalog
- Features a Elaborate structure and fine design
- Excellent brightness by using high luminance LED
- Provide a even illumination by widely difusing lights
- LED’s ultra-long life characteristics allow stable and continuous use
- Structural design for excellent heat resistance performance
- Max. 85dB
- Material : Body [ABS], Globe [PC]
- Operating Temperature : -20 ~ 45℃ (freezing free)
- Certificates :
Video
• AUT-50-L3S-AB-24

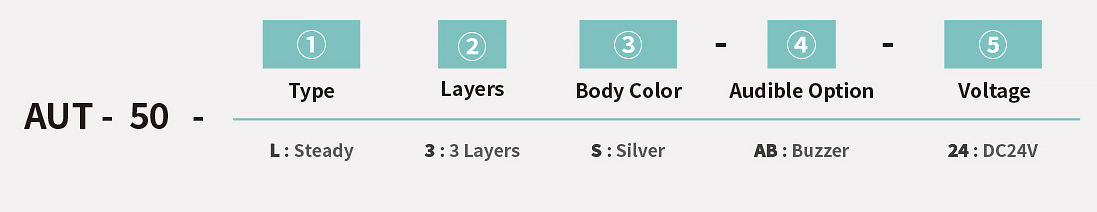

Ordering Information
Specifications
AUT-50-L3S-AB-24Aluminum Tower Light [Steady type]
| Model | AUT-50-L3S-AB-24 |
|---|---|
| Type | Steady type |
| Output | Buzzer(AB) |
| Voltage | DC24V |
| Input current | 12~14mA |
| Buzzer current | 24mA |
| Electrical energy | 1.5~2W |
| Color |
(1 Layer)●Red (2 Layer)●Yellow (3 Layer)●Green |
| Material | Body [ABS], Globe [PC] |
| IP Rating | IP40 |
| Buzzer Volume | Max. 85dB |
| Operating Temperature | -20 ~ 45℃ (freezing free) |
| System Certificates | ISO9001 |
| Certificates |
|
Wiring diagram
