AUT-CO SeriesConnector Type Signal Tower Light
- Connector Type Signal Tower Light
- 1 basic sounds (buzzer) are provided
- DC voltage models, available from DC12 to 24V
- Maximum 5 layers of LED Steady type
- Mounting accessories SV 06 pole Available exclusively
- External diameter : Ø58 / Max. 90dB
- Cable : M12 4PIN Cable ( Male ) / Cable length : 350mm
- The number of Cable : 1L: 1EA / 2L: 2EA / 3L: 2EA / 4L: 3EA / 5L: 3EA
- Material : Lens [GPPS], Body [ABS], Reflector [PC], Pole [Al]
- Operating Temperature : -25°C ~ 50°C (freezing free)

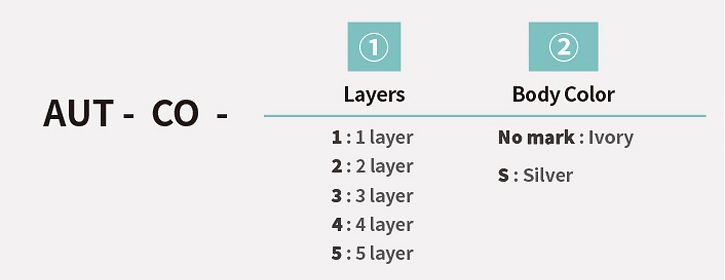

Ordering Information
Product specifications
AUT-COConnector Type Signal Tower Light
- Built-in buzzer & Steady type by default
- Voltage DC12 ~ 24V Only
- Buzzer function provided in addition to up to 5 colors of LED unit per Signal Tower
- Mount using the SV06 pole only
- With M12 PIN Cable
| Model | Layer | Voltage | LED Current | Audible Option Current | Height | Weight(g) | Color |
AUT-CO |
1L | DC12V~24V | 77mA | 37mA | 305mm | 390g | 1L (R) ● |
| 2L | 143mA | 348mm | 469g |
1L
(R) ● 2L (G) ● |
|||
| 3L | 220mA | 381mm | 504g |
1L
(R) ● 2L (G) ● 3L (Y) ● |
|||
| 4L | 296mA | 424mm | 582g |
1L
(R) ● 2L
(G) ● 3L (Y) ● 4L (B) ● |
|||
| 5L | 352mA | 467mm | 622g |
1L
(R) ● 2L
(G) ● 3L (Y) ● 4L (B) ● 5L (W) ○ |

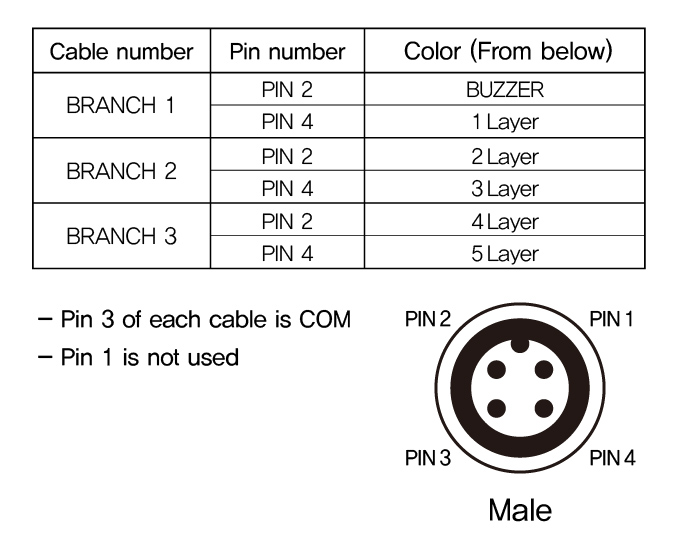

Cable connection method
.jpg)
외형도
