AUW – R100Bulb Revolving Warning Light

View Catalog
  • Ø100mm, small Bulb Revolving Warning Light
  • Magnet option & Cigarette lighter plug option (for DC12V only) are available
  • Excellent radiant effect using special vacuum metallizing reflector
  • Freely adjustable rotation speed with built-in volume switch
  • Buzzer, siren, and melody sound can be built in at the same time as the rotating light (volume Max. 80dB / may be measured lower than the actual decibel depending on the surrounding environment)
  • Audible Option : 3 basic sounds
  • Can be adjusted between AC110V ↔ 220V using changeover switch in the product
  • Microchip-based structure is simple and not affected by external noise
  • Material: Globe [GPPS], Body [ABS]
  • Operating Temperature : -25 ~ 50°C
  • Default wire length: 300mm

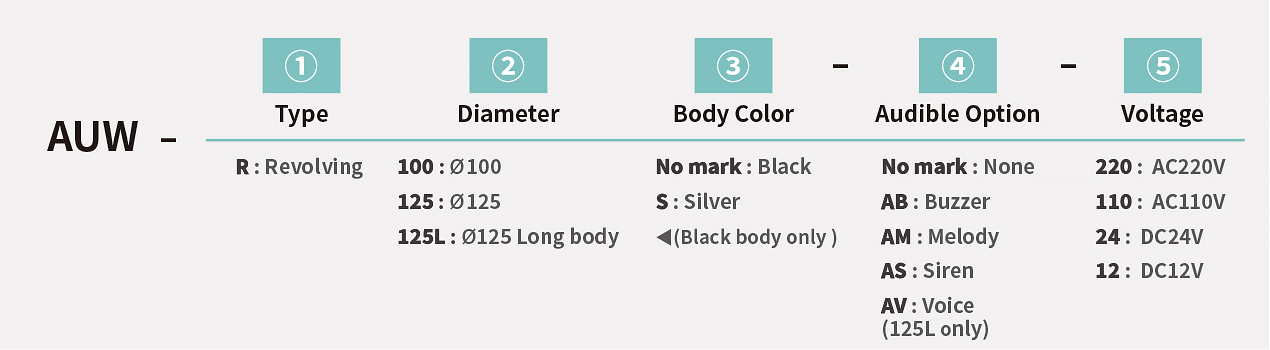

Nomenclature



Product specifications



AUW-R100

  • Ø100mm, small Bulb Revolving Warning Light
  • Audible Option : Buzzer, Siren, Melody
  • Magnet type & Cigarette lighter plug Option (for DC12V only) are available
  • Color:  Red (R) ●   Yellow (Y) ●   Green (G) ●   Blue (B) ●
MODEL Rated Voltage Current Bulb Weight(g)
AUW-R100 AC 110V 0.09 (A) 12V 10W 514 g
AC 220V 0.05 (A) 12V 10W 514 g
DC 12V 0.88 (A) 12V 10W 294 g
DC 24V 0.64 (A) 24V 10W 294 g



Embedded buzzer specifications
  • Basic 3 notes
  • Max. 80dB at 1m (may be measured lower than the actual decibel depending on the surrounding environment)
Output Tone
Max. 80dB Buzzer AB Beep~~~Beep
beep ~ beep ~ beep
Wing Wing Wing
Melody AM Fur Elise
Home Sweet Home
London Bridge is Falling Down
Siren AS Urgent
Emergency
Fire

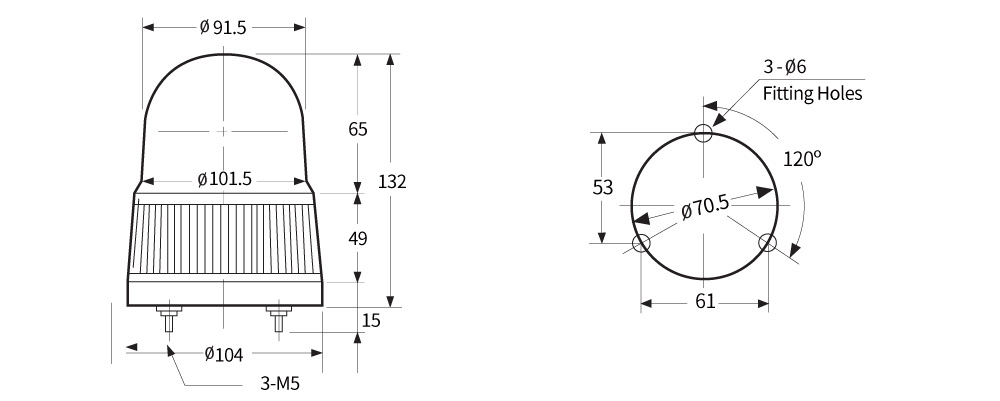

Technical Diagram
AUW-R100



Product wiring diagram
Vertical bracket

Available for warning lights in sizes Ø80, Ø100, and Ø125. (Bulb/LED type)
