AUW – L60 / AUW – LF60LED Steady / Flashing Type
- Ø60mm LED Steady/Flashing Type Warning Light
- No buzzer functions
- Material : Globe [GPPS] / Body [ABS]
- Operating Temperature : -25℃ ~ 50℃
- Default wire length: 300mm

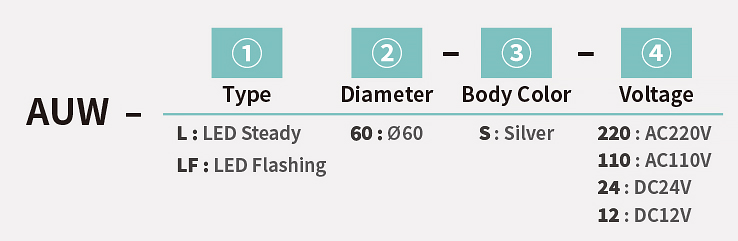

Nomenclature
Icon Description and Product Configuration
| Icon Description | |||
| Light Source | Operation | Sound | Option |
|
|
|
|
Incandescent bulb
Revolving type
Strobe (Flash) type
Maximum volume
Buzzer
Siren sound
Melody
Voice
Magnet mounted type
High luminance
Protective net | LED Bulb Steady/Flashing Type Warning Light | |
| Ø60 | |
| Steady | Flashing |
| AUW-L60 |
AUW-LF60 |
Specification by model
AUW-L60 / AUW-LF60
- Ø60mm small LED steady/flashing type Warning Light
- Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●
| MODEL | Rated voltage | Current | LED EA | Weight (g) | Color |
|---|---|---|---|---|---|
| AUW-L60 AUW-LF60 |
AC110V | 0.03 (A) | 16EA | 157g | ● Red ● Yellow ● Green ● Blue |
| AC220V | 0.02 (A) | ||||
| DC12V | 0.08 (A) | 129g | |||
| DC24V | 0.10 (A) |

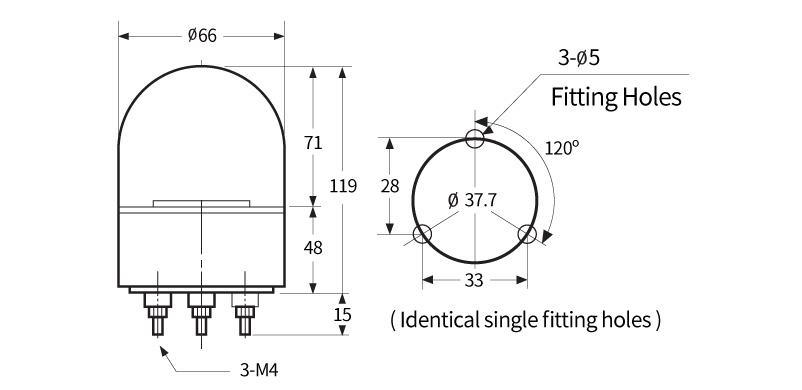

Technical Diagram
Product wiring diagram
Example of bracket attachment
