70ST5 SeriesSquare Profile Signal Tower Light
- An economical model that transmits five colors of signals with one stage
of a square tower light - High-brightness LED light sources provide excellent visibility even in dark places
- Aluminum square profile makes the appearance beautiful
- Color and buzzer indicating the condition or danger of the machine
- LED Color : red, yellow, green, blue, white
- Rated voltage : AC110 ~ 220V / DC24V
- Power consumption : 16W
- Indicating operation : Steady / Flashing
- Sound: buzzer sound < intermittent or continuous sound / volume 1m Max. 90dB at 1m
- Materials : Body [Al] / Bracket [ABS] / Lens [PC] / Pole [Al]
- Operating Temperature : -20℃ ~ 70℃ (freezing free)

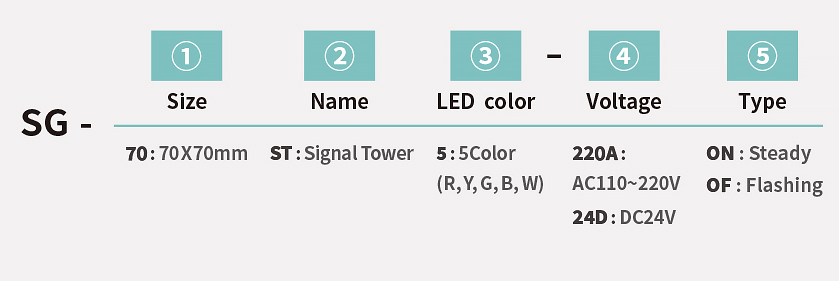

Ordering Information
Product specifications
A signal tower is installed on a machine or at a work site to inform workers of the machine status or risks using colored lights and buzzers. Unlike existing tower lamps that send a signal with the lens color for the work environment, it enables users to recognize the signal intuitively and clearly using a system that can change the color of the LED itself.
- Size : 70 X 70 LED Steady / Flashing signal tower
- Audible Option : Buzzer
- Lens Color : Transparent
- LED Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ● White (W) ○
- LED color can be changed according to the user’s work environment, and it can be configured by selecting the connection method of the Steady and Flashing buzzer
| Specifications | |
| Size(W X L X H) | 70mm x 70mm x 283mm |
| Mounting Size | 60.8mm x 60.8mm |
| Mounting hole | Ø4.5 |
| Voltage | AC110 ~ 240V / DC24V |
| Power consumption | 16W |
| Volume | Max. 90dB at 1m |
| Mounting Type | Bracket / Nut Type |
■ Accessories
| Bracket Type | Nut Type |
|---|---|
|
|
Technical Diagram
.jpg)
