AUT-45M Series45mm LED Steady / Flashing type Signal Tower Light
- Modular LED steady/flashing signal tower lamp with an external diameter of 45mm
- Modular construction for easy assembly with out any tools
- AUT-45M series is available as pre-assembled with the flexibility to customize
the color layer as needed - Built-in 8 melodies and notification sounds (basic 4 notes)
- Volume can be adjusted from the outside (Max. 85dB)
- Mounting pole (length, type) are selectable (default SH20)
- External diameter : Ø45
- Magnet mounted type is available for horizontal pole (SH)
- Material : Lens [GPPS], Body [ABS], Reflector [PC], Pole [Al]
- Operating Temperature : -25℃ ~ 50℃ (freezing free)
- ※ Default wire length : 1m
- ※ If you extend the power cable more than 10 meters, use a contact type product.
Video
• AUT-45M Signal Tower Light

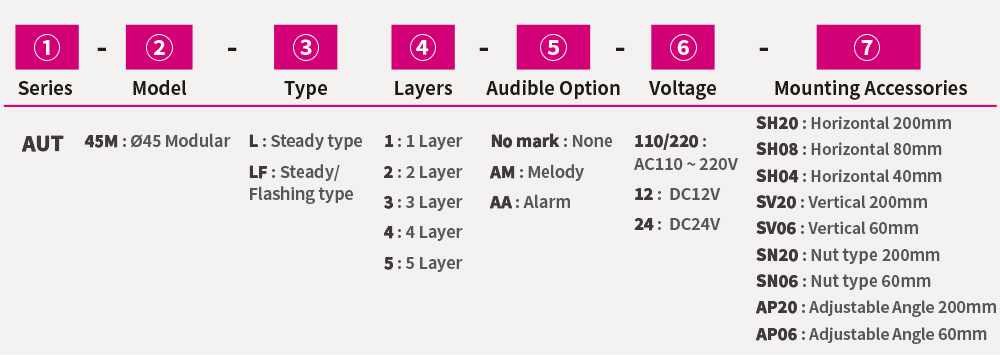

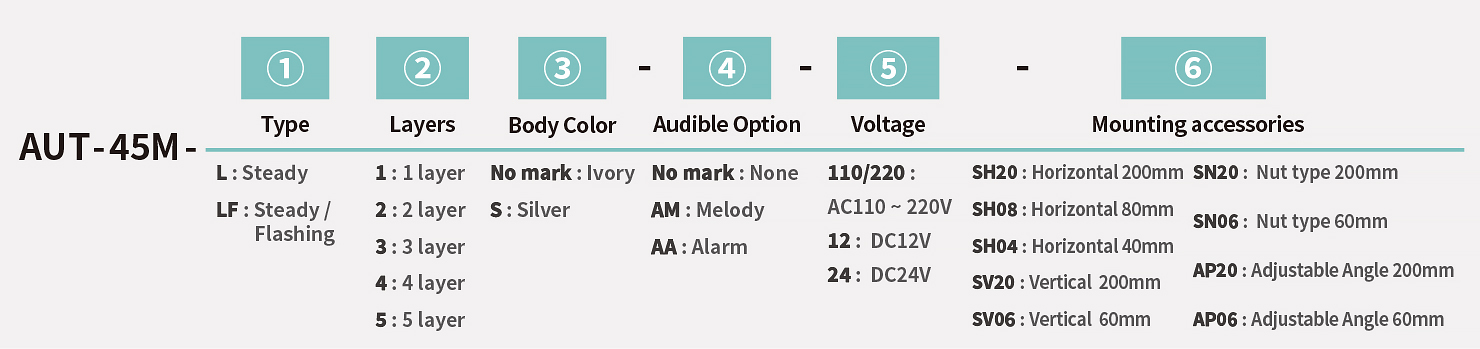

Ordering Information
AUT-45M Specifications
| Type | Layer | Voltage | Current | Weight | Color | |
| LED | Audible Option | |||||
| AUT-45M Steady type |
1 | AC110~220V | 0.024A | 0.068A | 320g | (1 layer)●Red |
| DC12V | 0.092A | 0.272A | 310g | |||
| DC24V | 0.064A | 0.233A | ||||
| 2 | AC110~220V | 0.035A | 0.068A | 350g | (1 layer)●Red (2 layer)●Green |
|
| DC12V | 0.140A | 0.272A | 330g | |||
| DC24V | 0.125A | 0.233A | ||||
| 3 | AC110~220V | 0.045A | 0.068A | 380g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green |
|
| DC12V | 0.186A | 0.272A | 360g | |||
| DC24V | 0.188A | 0.233A | ||||
| 4 | AC110~220V | 0.056A | 0.068A | 400g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue |
|
| DC12V | 0.232A | 0.272A | 390g | |||
| DC24V | 0.249A | 0.233A | ||||
| 5 | AC110~220V | 0.068A | 0.068A | 430g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue (5 layer)○White |
|
| DC12V | 0.277A | 0.272A | 420g | |||
| DC24V | 0.315A | 0.233A | ||||
| AUT-45M Steady/Flashing type |
1 | AC110~220V | 0.024A | 0.068A | 320g | (1 layer)●Red |
| DC12V | 0.084A | 0.272A | 310g | |||
| DC24V | 0.044A | 0.174A | ||||
| 2 | AC110~220V | 0.033A | 0.068A | 350g | (1 layer)●Red (2 layer)●Green |
|
| DC12V | 0.122A | 0.272A | 330g | |||
| DC24V | 0.058A | 0.174A | ||||
| 3 | AC110~220V | 0.042A | 0.068A | 380g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green |
|
| DC12V | 0.158A | 0.272A | 360g | |||
| DC24V | 0.076A | 0.174A | ||||
| 4 | AC110~220V | 0.052A | 0.068A | 400g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue |
|
| DC12V | 0.169A | 0.272A | 390g | |||
| DC24V | 0.086A | 0.174A | ||||
| 5 | AC110~220V | 0.062A | 0.068A | 430g | (1 layer)●Red (2 layer)●Yellow (3 layer)●Green (4 layer)●Blue (5 layer)○White |
|
| DC12V | 0.178A | 0.272A | 420g | |||
| DC24V | 0.095A | 0.174A | ||||
User Order Specifications
| Warning sound | Audible Option | Channel | Tone |
|---|---|---|---|
| AM Melody | Melody 4sounds | 1 | Fur Elise |
| 2 | Home Sweet Home | ||
| 3 | The Magic Flute | ||
| 4 | Piano Sonatas | ||
| AA Alarm | Alarm 4sounds | 1 | beep ~ beep ~ beep |
| 2 | Ding Dong | ||
| 3 | beep-ee | ||
| 4 | beep beep beep beep |
Bracket
-
※ In the case of the horizontal rod type, a magnet can be attached to the bottom.
| Horizontal (SH) | Vertical (SV) | Nut type (SN) | Adjusting the angle (AP) |
|---|---|---|---|
| Pole length : 200mm ( SH20 ) Pole length : 80mm ( SH08 ) Pole length : 40mm ( SH04 ) |
Pole length : 200mm ( SV20 ) Pole length : 60mm ( SV06 ) | Pole length : 200mm ( SN20 ) Pole length : 60mm ( SN06 ) |
Pole length : 200mm ( AP20 ) Pole length : 60mm ( AP06 ) |
 |
 |
 |
 |

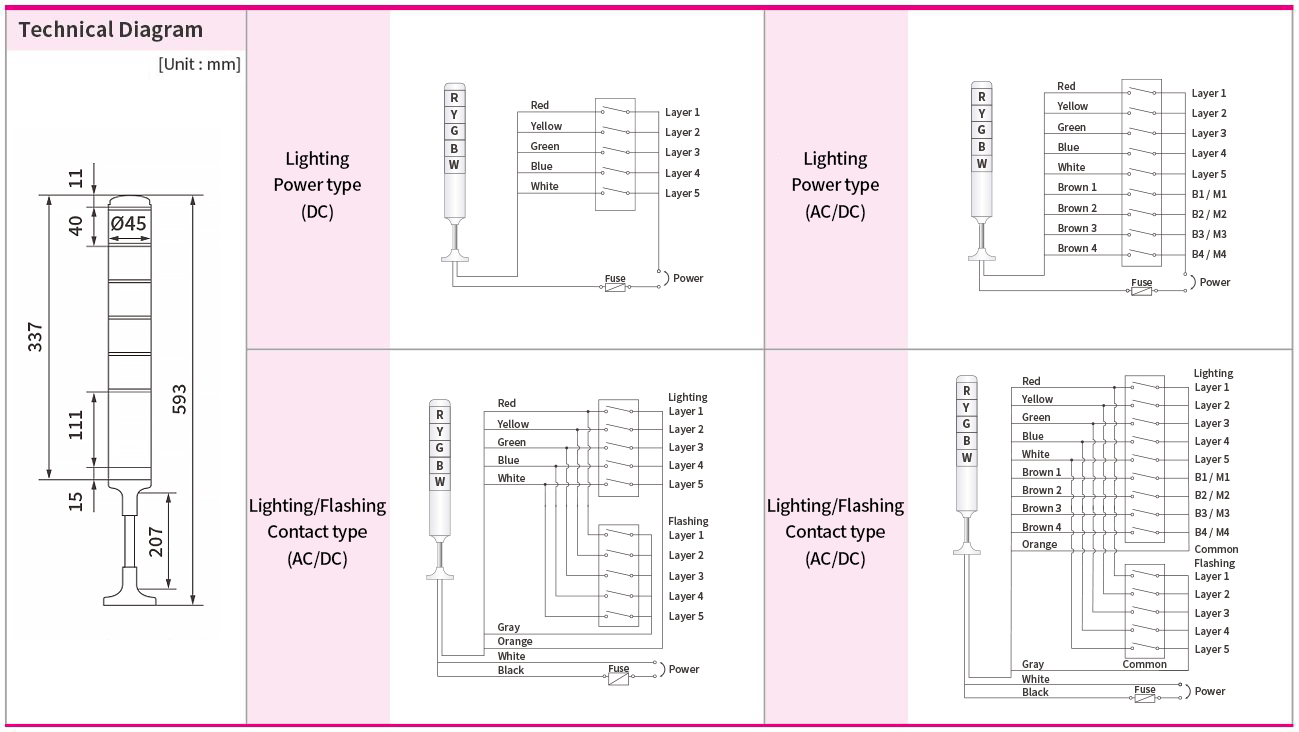

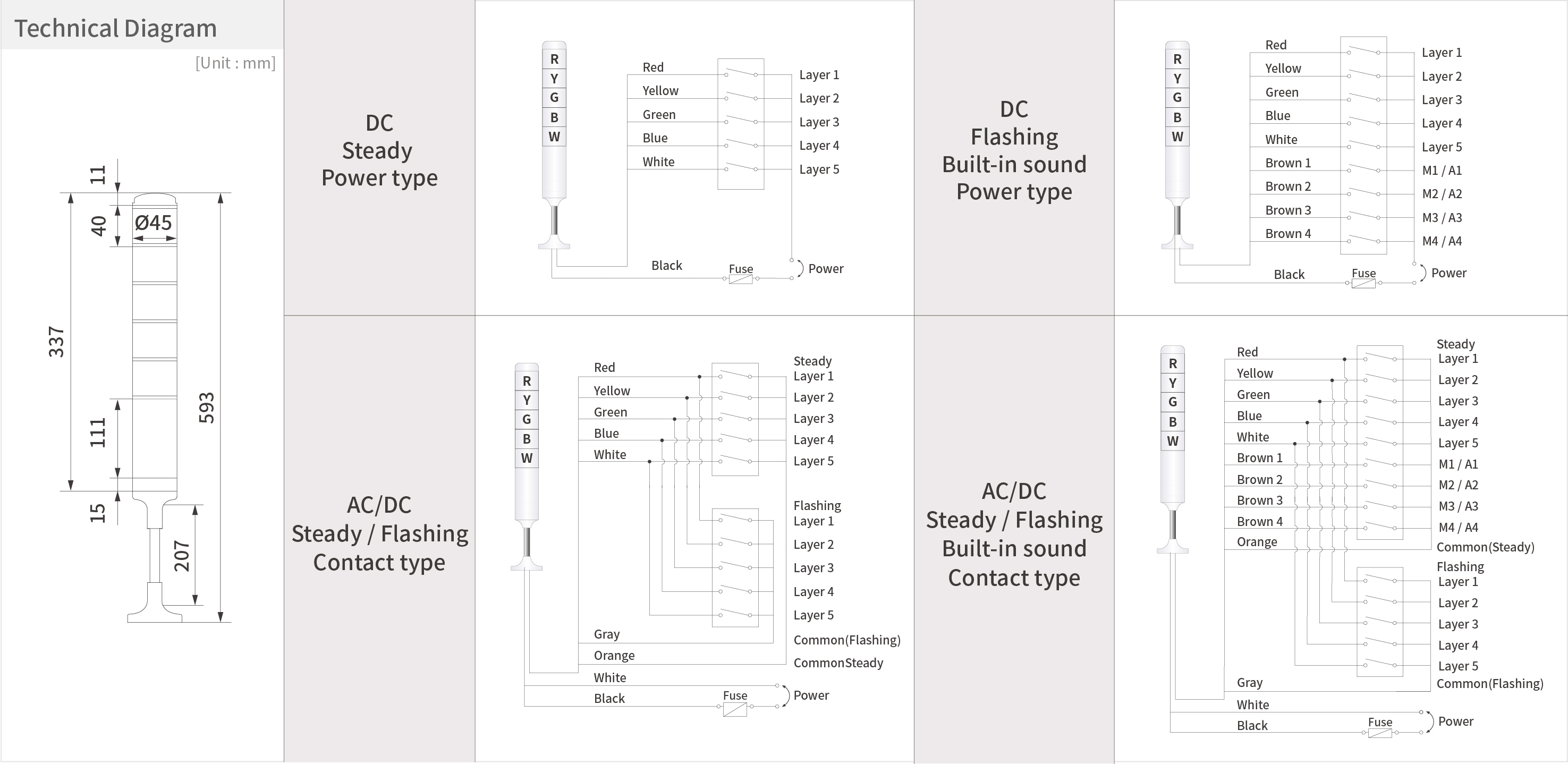

Technical Diagram
