Power Distribution

Power Distribution

View Catalog

  • There are 2 layers / 3 layers / 4 layers and the terminal has 6P /10P
  • There is a capacity of 50A / 100A / 200A
  • There is a removable protective cover to prevent accidents such as electric shock in advance.
  • Busbar direction (left, right) position can be changed.
  • 35mm Din-rail mounting possible.
  • Certificates : ROHS



The power distribution is a device that distributes the secondary power supplied from the main power to the primary power of each phase. By improving on the existing complex distribution method, it increases the efficiency of installation work. The PC-made cover and heat-resistant material side plate are highly resistant to shock and heat, enabling you to use it safely.

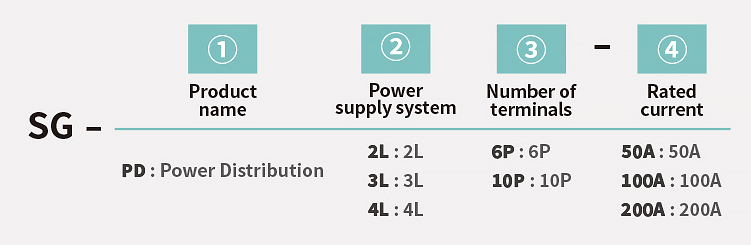

Ordering Information

  • ① Product name : Power Distribution
  • ② Power supply system : 2L / 3L / 4L
  • ③ Number of terminals : 6P / 10P
  • ④ Rated current : 50A / 100A / 200A



Product specifications
  • Rated current : 50A / 100A / 200A
  • Rated voltage : 600V
  • Tolerance : ±1mm
  • Operating Temperature : -20℃ ~ 110℃
  • Materials : Side plate [mPPO] / Cover [PC]
    99.9% Copper + Tin plated busbar

2L
SG-PD2L06-50A

2L

SG-PD2L06-50A
  • Size(mm) : 119mm x 49mm x 45mm
  • Weight(g) : 90g
SG-PD2L06-100A

2L

SG-PD2L06-100A
  • Size(mm) : 132mm x 59mm x 48mm
  • Weight(g) :173g
SG-PD2L10-100

2L

SG-PD2L10-100A
  • Size(mm) : 180mm x 59mm x 48mm
  • Weight(g) : 240g
3L
SG-PD3L06-50A

2L

SG-PD3L06-50A
  • Size(mm) : 119mm x 70mm x 56mm
  • Weight(g) : 133g
SG-PD3L06-100A

3L

SG-PD3L06-100A
  • Size(mm) : 132mm x 85mm x 60mm
  • Weight(g) : 265g
SG-PD3L06-200A

3L

SG-PD3L06-200A
  • Size(mm) : 156mm x 103mm x 67mm
  • Weight(g) : 480g
    • ※ Available up to 250A
SG-PD3L10-100A

3L

SG-PD3L10-100A
  • Size(mm) : 180mm x 85mm x 60mm
  • Weight(g) : 357g
SG-PD3L10-200A

3L

SG-PD3L10-200A
  • Size(mm) : 211mm x 103mm x 67mm
  • Weight(g) : 650g
    • ※ Available up to 250A
4L
SG-PD4L06-100A

4L

SG-PD4L06-100A
  • Size(mm) : 132mm x 111mm x 72mm
  • Weight(g) : 355g
SG-PD4L06-200A

4L

SG-PD4L06-200A
  • Size(mm) : 156mm x 135mm x 81mm
  • Weight(g) : 646g
    • ※ Available up to 250A
SG-PD4L10-100A

4L

SG-PD4L10-100A
  • Size(mm) : 180mm x 111mm x 72mm
  • Weight(g) : 480g
SG-PD4L10-200A

4L

SG-PD4L10-200A
  • Size(mm) : 211mm x 135mm x 81mm
  • Weight(g) : 878g
    • ※ Available up to 250A



Model Size(mm) Busbar size(mm) IN
Screw		 OUT
Screw		 Mounting Size & hole size(mm) Weight(g) Videos
SG-PD2L06-50A 119 X 49 X 45 2T X 10 M5 M4 108 X 39 /Ø4.1 90g View Video
SG-PD3L06-50A 119 X 70 X 56 2T X 10 M5 M4 108 X 60 /Ø4.1 133g View Video
SG-PD2L06-100A 132 X 59 X 48 3T X 15 M6 M5 117 X 49 /Ø4.1 173g View Video
SG-PD2L10-100A 180 X 59 X 48 3T X 15 M6 M5 166 X 49 /Ø4.1 240g View Video
SG-PD3L06-100A 132 X 85 X 60 3T X 15 M6 M5 117 X 75 /Ø4.1 265g View Video
SG-PD3L06-200A 156 X 103 X 67 4T X 20 M8 M6 130 X 93 /Ø4.1 480g View Video
SG-PD3L10-100A 180 X 85 X 60 3T X 15 M6 M5 166 X 75 /Ø4.1 357g View Video
SG-PD3L10-200A 211 X 103 X 67 4T X 20 M8 M6 186 X 93 /Ø4.1 650g View Video
SG-PD4L06-100A 132 X 111 X 72 3T X 15 M6 M5 117 X 101 /Ø4.1 355g View Video
SG-PD4L06-200A 156 X 135 X 81 4T X 20 M8 M6 131 X 123 /Ø4.1 646g View Video
SG-PD4L10-100A 180 X 111 X 72 3T X 15 M6 M5 166 X 101 /Ø4.1 480g View Video
SG-PD4L10-200A 211 X 135 X 81 4T X 20 M8 M6 186 X 123 /Ø4.1 878g View Video
