Plastic terminal box uses flame-retardant ABS and is suitable for sensors, limit S/W, V/V box, and various S/W types of intermediate terminal boxes. It is produced integrally without hassle to assemble the existing prefabricated terminal block and box, maximizing productivity and saving resources for more practical and safe use. It is mainly used in various fields such as industrial machinery, robotics, commercial wiring, and low voltage control systems.
Ordering Information
- ① Product name : Plastic Terminal Box
- ② The number of pin : 4 – 50Pin
- ③ Ampere : P, PT : 10A / P15 : 15A
- ④ Color : G : Gray / I : Ivory
GC : Gray with Transparent cover
IC : Ivory with Transparent cover
Product feature
- Boxes come in two colors, gray and ivory, with three types of covers: gray, ivory and transparent.
- Waterproof and dustproof with poly urethane packing.
- Terminal integral box with flame retardant ABS available in various sizes for user convenience
- Certificates :
Product specifications
- Color : Gray, Ivory, Transparent cover
- Tolerance : ±1mm
- Operating Temperature : -20℃ ~ 70℃
- Protection rating : IP65 / IK08 / IP2X (TB-4P, 6P models only)
- Materials : ABS / Transparent cover [PC]
- Mounting & Hole size: 0.17in
- Allowable current : 10A /15A
- Rated frequency : 50Hz
- Input voltage: AC250Volts
- Internal voltage : 1880V /1minute
| Model | Size(mm) | Weight(g) | Pictures | Videos |
| SG-TB-4P | 50 X 85 X 40 | 80 | View Pictures | View Videos |
| SG-TB-4P15 | 52 X 90 X 45 | 94 | View Pictures | View Videos |

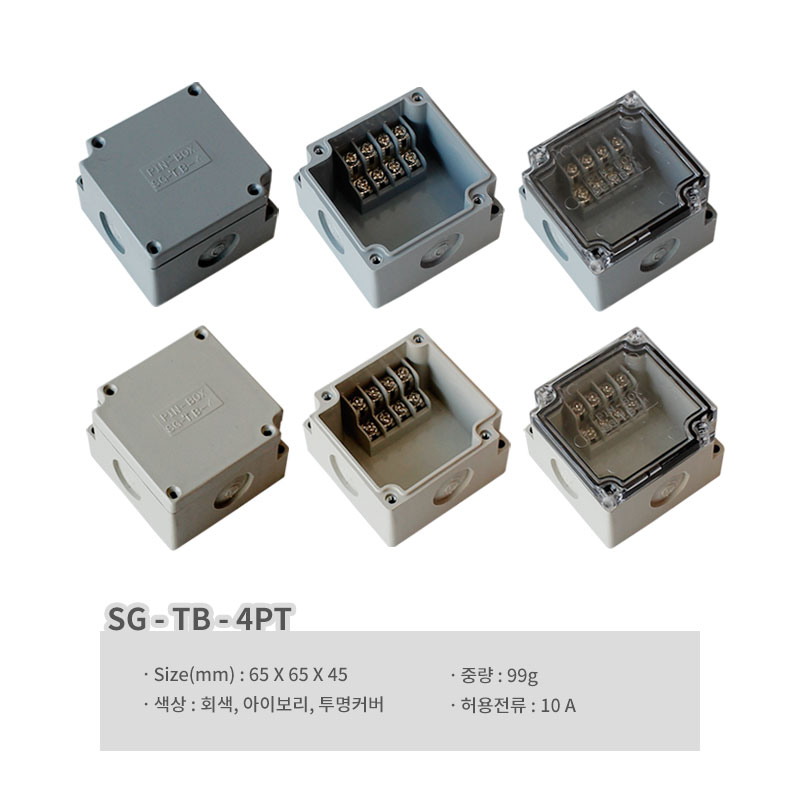

| SG-TB-4PT | 65 X 65 X 45 | 99 | View Pictures | View Videos |
| SG-TB-6P | 55 X 85 X 40 | 88 | View Pictures | View Videos |
| SG-TB-6P15 | 65 X 90 X 45 | 135 | View Pictures | View Videos |
| SG-TB-6PT | 65 X 80 X 45 | 115 | View Pictures | View Videos |
| SG-TB-10P15 | 90 X 100 X 45 | 183 | View Pictures | View Videos |
| SG-TB-10PT | 65 X 110 X 45 | 156 | View Pictures | View Videos |
| SG-TB-15P15 | 100 X 200 X 65 | 423 | View Pictures | View Videos |
| SG-TB-15PT | 75 X 170 X 55 | 290 | View Pictures | View Videos |
| SG-TB-20P15 | 150 X 160 X 65 | 479 | View Pictures | View Videos |
| SG-TB-20PT | 80 X 235 X 56 | 440 | View Pictures | View Videos |

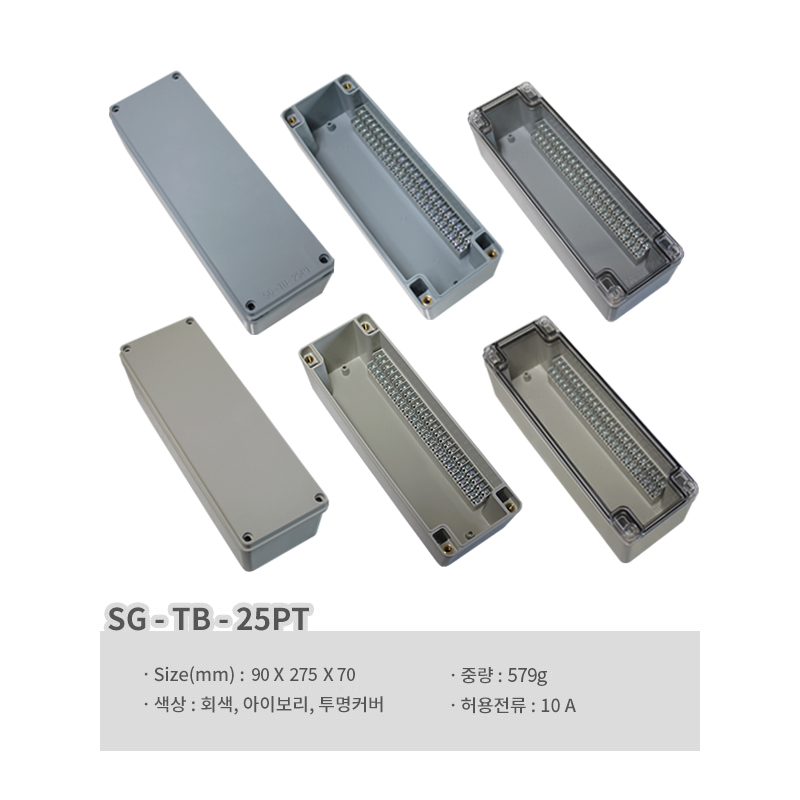

| SG-TB-25PT | 90 X 275 X 70 | 579 | View Pictures | View Videos |
| SG-TB-30P | 125 X 190 X 65 | 527 | View Pictures | View Videos |

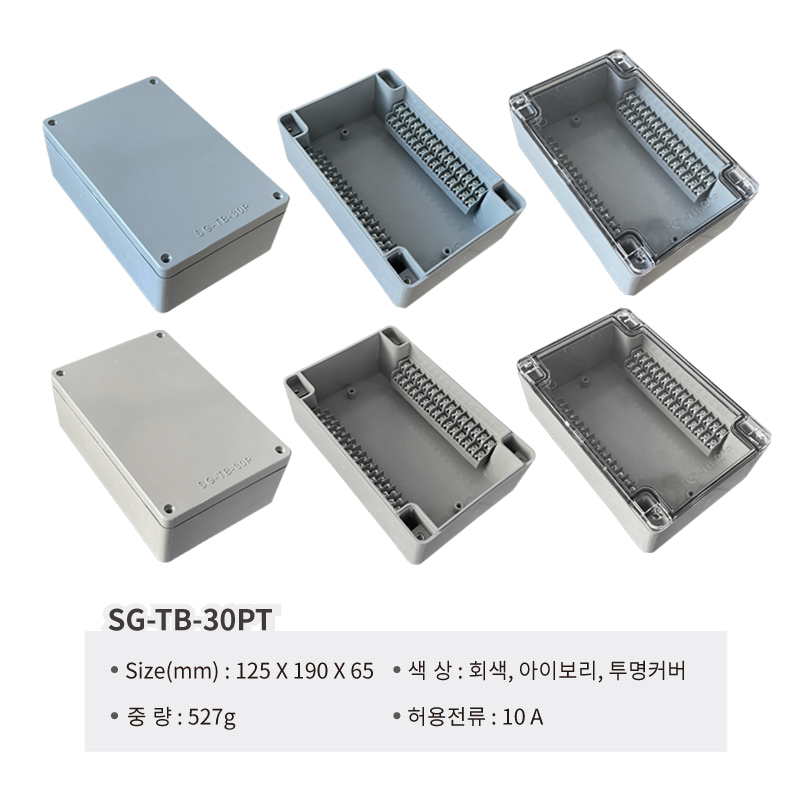

| SG-TB-30PT | 125 X 190 X 65 | 527 | View Pictures | View Videos |
| SG-TB-40P | 160 X 260 X 90 | 1421 | View Pictures | View Videos |
| SG-TB-50P | 160 X 260 X 90 | 1522 | View Pictures | View Videos |
