Power Distribution Terminal Block
- Capacity 100A / 200A / 250A / 400A available
- There are 4P / 6P / 8P / 9P / 12P
- It is a compact size than the existing type, so it can be used efficiently in a small space.
- Hinged protective cover prevents accidents such as electric shock in advance.
- Installation and maintenance are convenient as screw connection and channel mounting are possible on the main body.
- Customers can choose the wrench bolts option as the output bolts to obtain the use stability.
- Certificates :
The terminal-type power distributor is small in size, economical, and improves work efficiency so that it can be used conveniently. It can be used by directly loading it into the main body of the product in a narrow space or by mounting it on a standard 35mm chanel, and consists of one input terminal and four to eight output terminals, respectively. It is resistant to impact and heat using heat-resistant materials, and the booth bar is plated with 99.9% copper and tin, which has higher conductivity than brass, and the power inlet protection cover allows safer and more convenient use.
Ordering Information
- ① Product name : Power Distribution Terminal Block
- ② Rated current : 100A / 200A / 250A / 400A
- ③ Number of terminals : 4P / 6P / 8P / 9P / 12P
Product specifications
- Rated current : 100A (50 A communal Available) / 200A / 250A / 400A
- Pitch : 20mm / 30mm / 40mm
- Rated voltage : 600V
- Tolerance : ±1mm
- Operating Temperature :-20℃ ~ 110℃
-
Materials : Side plate [MPPO] / Cover [PC]
99.9% Copper + Tin plated busbar
SG-PD-100A
View Pictures
| Model | SG-PD-100-4P | SG-PD-100-6P |
| Rated voltage / current | 600V / 100A | |
| Pitch | 20mm | |
| IN Screw | M6 | |
| OUT Screw | M4 X 2 , M5 X 2 | M4 X 6 |
| Busbar Size | 3T X 20mm | |
| Product Size | 25mm x 95mm x 58mm | |
| Mounting Size & hole | 85.5mm x 12.4mm / Ø4.5 | |
| Weight(g) | 104g | |
| Videos | View Video | View Video |
SG-PD-200A
View Pictures
| Model | SG-PD-200-4P | SG-PD-200-6P | SG-PD-200-8P | |
| Rated voltage / current | 600V / 200A | |||
| Pitch | 30mm | |||
| IN Screw | M8 | |||
| OUT Screw | M5 X 2 , M6 X 2 | M5 X 6 | M4 X 6 , M5 X 2 | |
| Busbar Size | 3T X 30mm | |||
| Product Size | 35mm x 95mm x 58mm | |||
| Mounting Size & Hole | 85.5mm x 17.4mm / Ø4.5 | |||
| Weight(g) | 165g | 163g | ||
| Videos | View Video | View Video | View Video | |

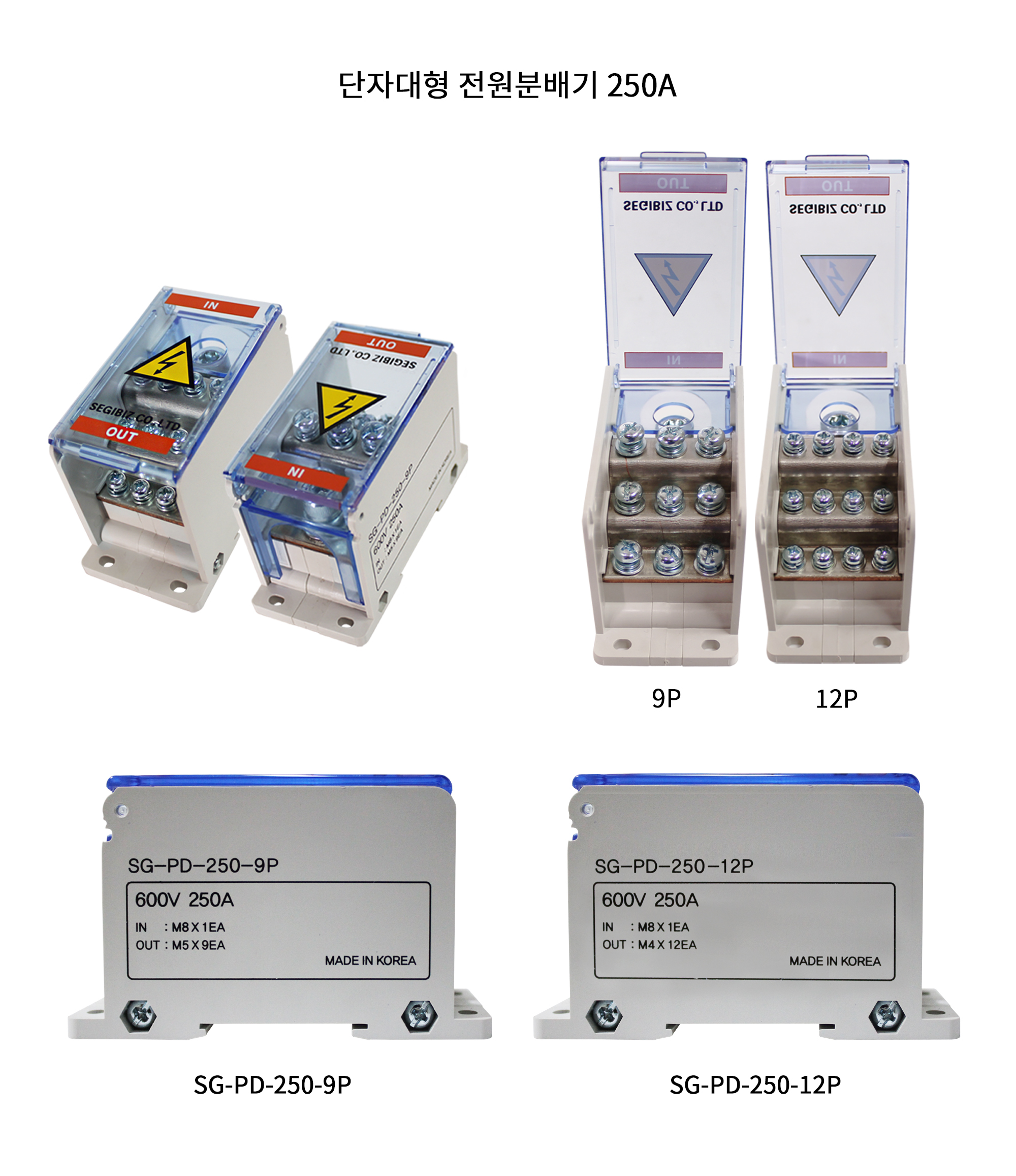

SG-PD-250A
View Pictures
| Model | SG-PD-250-9P | SG-PD-250-12P |
| Rated voltage / current | 600V / 250A | |
| Pitch | 40mm | |
| IN Screw | M8 | |
| OUT Screw | M5 X 9 | M4 X 12 |
| Busbar Size | 3T X 40mm | |
| Product Size | 45mm x 95mm x 58mm | |
| Mounting Size & hole | 85.5mm x 27.4mm / Ø4.5 | |
| Weight(g) | 230g | |
| Videos | View Video | View Video |
SG-PD-400A
View Pictures
| Model | SG-PD-400-6P | SG-PD-400-8P |
| Rated voltage / current | 600V / 400A | |
| Pitch | 40mm | |
| IN Screw | M10 | |
| OUT Screw | M8 X 6 | M8 X 2 , M6 X 6 |
| Busbar Size | 4T X 40mm | |
| Product Size | 45mm x 148mm x 83mm | |
| Mounting Size & Hole | 136.4mm x 22.3mm / Ø5.5 | |
| Weight(g) | 419g | 403g |
| Videos | View Video | View Video |
CAD Download
