고휘도

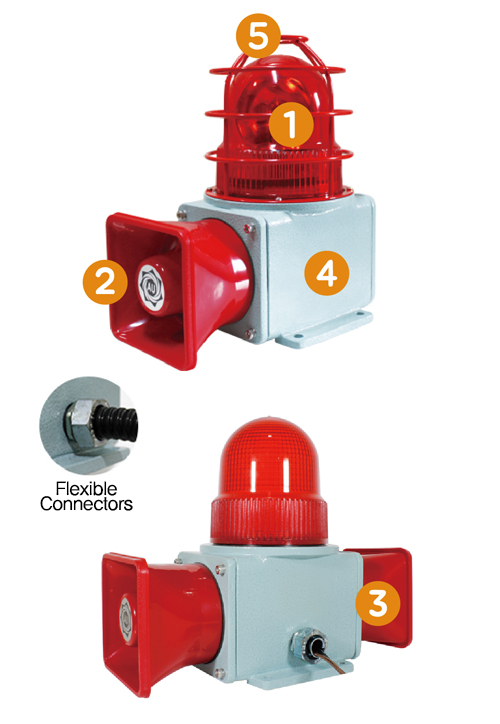

Heavy duty industrial 125mm Warning Light and Electronic Horn
3 types of light sources can be chosen, based on installation purpose
Suitable for outdoor, shipping, and heavy industry with completely waterproofed structure
Classified into one-way (25W) / two-way (50W) , depending on output
Material : Body [ Aluminum (AC7A) ], Globe [ GPPS, PC ], Electronic Horn [ ABS ]
Standard body color : MUNSELL NO.7.5G / 7.2
Operating Temperature : -25 ~ 50℃

Icon Description
Light Source	Operation	Sound	Option
Incandescent bulb LED Light	Steady type Flashing type Rotation type Strobe (Flash) type	Maximum volume Buzzer Siren Melody Voice	Magnet mounted type High luminance Protective net

Light Source & Function

Bulb Revolving	Multiple Function LED ( Steady / Flashing / Rotation / Rotation – Flashing )	Caution LED

◎ Three tones can be used to suit the purpose: siren, melody, and buzzer.

◎ One-way Horn : 25W / Two-way Horn : 50W

◎ Highly durable aluminum housing is excellent waterproofing and dust-proofing

◎ Protective net installed outside the grove to prevent damage to the grove due to impact. Available as optional option

AUCS-R125AUCS-L125AUCS-CL125

Heavy Duty Industrial Bulb Revolving Warning Light & Electronic Horn Combinations (Ø125mm)
Maximum volume : 115dB
DC Polarity : Red (+) / Black (-)
Audible Option : Siren (3 sounds) / Melody (3 sounds) / Buzzer (3 sounds)
Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●

MODEL	Rated voltage	Current consumption	Bulb	Weight
AUCS-R125-25W (one way)	AC 110V	0.21 (A)	12V 15W	3760 g
	AC 220V	0.12 (A)	12V 15W	3760 g
	DC 12V	1.50 (A)	12V 15W	3697 g
	DC 24V	0.90 (A)	24V 15W	3735 g

MODEL	Rated voltage	Current consumption	Bulb	Weight
AUCS-R125-50W (two way)	AC 110V	0.26 (A)	12V 15W	4659 g
	AC 220V	0.17 (A)	12V 15W	4659 g
	DC 12V	1.64 (A)	12V 15W	4594 g
	DC 24V	0.98 (A)	24V 15W	4594 g

Heavy Duty Industrial Multiple Function LED Warning Light & Electronic Horn Combinations (Ø125mm)
Maximum volume : 115dB
Audible Option : Siren (3 sounds) / Melody (3 sounds) / Buzzer (3 sounds)
DC Polarity : Red (+) / Black (-)
Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B) ●

MODEL	Rated voltage	Current consumption	LED EA	Weight
AUCS-L125-25W (one way)	AC 110V	0.17 (A)	54EA	3390 g
	AC 220V	0.11 (A)	54EA	3390 g
	DC 12V	0.47 (A)	54EA	3097 g
	DC 24V	0.45 (A)	54EA	3105 g

MODEL	Rated voltage	Current consumption	LED EA	Weight
AUCS-L125-50W (two way)	AC 110V	0.22 (A)	54EA	4272 g
	AC 220V	0.14 (A)	54EA	4272 g
	DC 12V	0.61 (A)	54EA	3979 g
	DC 24V	0.56 (A)	54EA	3987 g

Heavy Duty Industrial Caution LED Warning Light; Electronic Horn Combinations (Ø125mm)
Maximum volume : 115dB
Audible Option : Siren (3 sounds) / Melody (3 sounds) / Buzzer (3 sounds)
DC Polarity : Red (+) / Black (-)
Color : Red (R) ● Yellow (Y) ● Green (G) ● Blue (B)
